At some point during the OpenShift deployment phase, a question about project onboarding comes up, "How can a new customer or tenant be onboarded so they can deploy their own workload onto the cluster(s)?" While there are different ways from a process perspective (Service Now, Jira, etc.), I focus on the Kubernetes objects that must be created on each cluster.

In A Guide to GitOps and Argo CD with RABC, I described setting up GitOps RBAC rules so tenants can work with their (and only their) projects.

This article demonstrates another possibility for deploying per tenant and per cluster:

  • Namespace(s) including labels.
  • Local project admin group (in case groups are not managed otherwise, like LDAP Group Sync).
  • Argo CD AppProject, which limits allowed repos, clusters, permissions, etc.
  • Resource Quotas for a project.
  • Limit Ranges for a project.
  • Default Network Policies, which are:
    • Allow traffic in the same Namespace.
    • OpenShift Monitoring and API Server.
    • OpenShift Ingress.
    • Egress deny All.
  • Custom Network Policies.

The idea is to fully automate the creation of Kubernetes objects by configuring a Helm values-file in a specific folder structure that an ApplicationSet observes.

Each Kubernetes object can be enabled or disabled to provide more flexibility. For example, if you do not want to work with Limit Ranges, you can disable (or completely remove the whole YAML block), and they will not be created. The same setting is available for any other object.

CAUTION: The configuration of a values-files can be quite confusing. Therefore, I have created an example called project T-Shirt size (see below). The T-Shirts are defined in the global-values-file. Settings can still be overwritten per project if required.

As in my previous article, the Argo CD AppProject object limits a tenant/project accordingly.

I will use a Helm Chart to create any required object. The reasons why I prefer Helm templating are:

  • Better repeatability.
  • Allows creating easy configuration for most important items (disable/enable objects).
  • Allows you to create more complex configurations if needed (disable/enable objects).
  • Templating works better than patching in this case, since you do not need to deal with hundreds of overlays or patching configurations, but simply create a values-file and define everything there.

Still, you can use other options like Kustomize to achieve the same goal. In the end, it is up to you what you prefer.

Use case

I will demonstrate the following use case:

  • I have two applications, my-main-app and my-second-app, that should be onboarded onto the cluster.
  • my-main-app is using two Namespaces, my-main-app-project-1 and my-main-app-project-2. Maybe Mona uses this for frontend and backend parts of the application.
  • Mona is the admin for both applications.
  • Peter can only manage my-main-app.
  • Mona and Peter request new projects (multiple) for the cluster, which will be prepared by the cluster-admin who will create a new folder and generate a values-file (Helm) for that project and the target cluster.
  • The cluster-admin synchronizes the project onboarding application in GitOps, which will create all required objects (Namespace, ResourceQuota, Network Policies, etc.).
  • Mona and Peter can then use an application-scoped GitOps instance (a second instance) to deploy their application accordingly using the allowed namespace, repositories, etc. (limited by GitOps RBAC rules).

CAUTION: When you install openshift-gitops (Argo CD), a centralized cluster-scoped GitOps instance, a wide range of privileges is created. Developers should not use this instance to onboard their applications. Instead, an application-scoped GitOps instance should be created.

NOTE: I am working with only one cluster to make it easier for me. But different clusters can be used, all managed by a central GitOps instance.

Prerequisites and assumptions

  1. Users on the cluster: To test everything, Mona and Peter must be able to authenticate. I used simple htpasswd authentication on my cluster.
  2. Second Argo CD instance (application-scoped GitOps instance): You should not use the main openshift-gitops instance to deploy a tenant workload onto the cluster. Instead, create an application-scoped GitOps instance.
  3. Example application: https://github.com/tjungbauer/book-import/
  4. Developers must know and follow the GitOps approach. This is a process thing and common practice. If it is not in Git, it does not exist.

Correlation

The following diagram depicts the relationship between the different objects and GitOps instances.

NOTE: The cluster-admins (platform team) are responsible for all objects created here. Mona and Peter can log into the application-scoped GitOps instance (the second Argo CD instance) and then create and sync their Applications.

Directory structure

ApplicationSets automatically creates multiple Argo CD Applications based on a so-called Generator. In my case, I am using the Git Generator, which walks through a defined folder, reads the configuration files (here, Helm values-files), and uses the parameters to generate the Argo CD Application.

The folder structure looks like the following:

▶├──tenant-projects
│ ├──my-main-app
│ │ └──cluster-local
│ │ └──values.yaml
│ ├──my-second-app
│ │ └──cluster-local
│ │ └──values.yaml
 │ └──values-global.yaml



Any tenant is a separate folder, and any tenant can have one or more Namespaces (Projects). I am using the application's name as the separator, for example, my-main-app. Below the application folder, a folder for each cluster is created to distinguish the configuration for different clusters, for example, cluster-local. Finally, this folder contains a large values.yaml that defines everything required for the project onboarding.

The following ApplicationSet uses the files in tenant-projects/**/values.yaml to fetch the parameters. It generates an Application named "-" and uses the Helm Chart Project Onboarding as the source, providing two values-files:

  • values-global.yaml: Defines global values, currently the Namespace of the application-scoped GitOps instance, and a list of environments.
  • values.yaml of the appropriate folder.
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
 name: onboarding-tenant-workload
 namespace: openshift-gitops
spec:
 goTemplate: true # <1>
 syncPolicy:
  preserveResourcesOnDeletion: true # <2>
 generators:
  - git:
      files:
        - path: tenant-projects/**/values.yaml # <3>
      repoURL: 'https://github.com/tjungbauer/openshift-cluster-bootstrap'
      revision: main
 template:
  metadata:
    name: '{{ index .path.segments 1 | normalize }}-{{ .path.basename }}' # <4>
  spec:
    info:
      - name: Description
        value: Onboarding Workload to the cluster
    destination:
      namespace: default
      name: '{{ .environment }}' # <5>
    project: default
    source:
      helm:
        valueFiles: # <6>
          - '/{{ .path.path }}/values.yaml'
          - /tenant-projects/values-global.yaml
      path: clusters/all/project-onboarding
      repoURL: 'https://github.com/tjungbauer/openshift-cluster-bootstrap' # <7>
        targetRevision: main



<1> goTemplate is set to true, to enable functions like "normalize".

<2> Applications, created by this ApplicationSet, shall remain even if the ApplicationSet gets deleted.

<3> The path that shall be observed by this ApplicationSet. ** will return all files and directories recursively.

<4> The name that shall be used to generate an Application. The parameter generated out of the folder-name (==app name) and the basename (clustername).

<5> The target cluster to which the tenant workflow shall be deployed. This setting is coming from the values-file.

<6> A list of values files, that shall be used.

<7> The repo URL and path which shall be read.

The Helm Chart found at clusters/all/project-onboarding is only a wrapper that will use the actual Helm Chart helper-proj-onboarding as a dependency. This is where all the magic happens. The wrapper chart is used only to let the ApplicationSet search the GitHub repository and find all the required values-files, which I did not want to attach directly to the actual Helm Chart.

Values file: values-global.yaml

This values-file defines global parameters. The following are the minimum that shall be defined in this file:

global:
 # Namespace of application scoped GitOps instance, that is responsible to deploy workload onto the clusters
  application_gitops_namespace: gitops-application # <1>

 # cluster environments. A list of clusters that are known in Argo CD
 # name and url must be equal to what is defined in Argo CD
 envs: # <2>
  - name: in-cluster
    url: https://kubernetes.default.svc
  - name: prod-cluster
      url: https://production.cluster



<1> The name of the second Argo CD instance (the application-scoped GitOps instance).

<2> The list of clusters as known in Argo CD.

Values file: values.yaml

The individual values files are separated by:

  1. The tenants/projects.
  2. The clusters.

This file defines everything required for project onboarding. The example file is quite huge, and probably not everything is needed for every onboarding scenario. You can find a full example in my GitHub repository: values.yaml

Basic parameters

The basic parameters define settings that are either used by the ApplicationSet, define anchors that are used multiple times, or simply define values at the beginning of the file.

The following settings are currently used:

  1. oidc_groups: Name of the group allowed to work with the Argo CD project. This group might be created by the Helm Chart or must be known (i.e., it is automatically synchronized).
  2. environment: Defines the name of the cluster as known in Argo CD. in-cluster is the default (local) cluster that Argo CD will create.

NOTE: Environment is defined in each values.yaml and must be one of the clusters defined in the values-global file.

# Group that is allowed in RBAC. This group can either be created using this Helm Chart (will be named as <namespace>-admin) or must be known (for example synced via LDAP Group Sync)
oidc_groups: &oidc-group my-main-app-project-1-admins

# Environment to which these values are valid, this should be the cluster name as visible in Argo CD
# In best case the same is equal to the folder we are currntly in, but this is optional.
environment: &environment in-cluster



Parameters passed to helper-proj-onboarding

Most parameters are handed over to the Chart helper-proj-onboarding. This is indicated by:

# Parameters handed over to Sub-Chart helper-proj-onboarding
helper-proj-onboarding:



All parameters below are used by the Sub Chart.

Namespaces

One or more Namespaces can be created for a tenant. It defines a name, additional_settings (additional labels), and tenant labels. As with any object, a Namespace can be enabled or disabled. Be aware that simply disabling a Namespace does not mean that GitOps will automatically delete all objects (not with the syncOptions setting that the ApplicationSet defines). If a project is decommissioned, the prune option must be selected during the Sync.

The following defines the block that might be used to create a new Namespace object:

  # List of namespaces this tenant shall manage.
 # A tenant or project may consist of multiple namespace
  namespaces:

  # Name of the first Namespace
    - name: &name my-main-app-project-1

    # Is this Namespace enabled or not
      enabled: true

    # Additional labels for Podsecurity and Monitoring for the Namespace
    additional_settings:
      # Pod Security Standards
      # https://kubernetes.io/docs/concepts/security/pod-security-standards/#restricted
      # Possible values: Privileged, Baseline, Restricted
      # Privileged: Unrestricted policy, providing the widest possible level of permissions. This policy allows for known privilege escalations.
      # Baseline: Minimally restrictive policy which prevents known privilege escalations. Allows the default (minimally specified) Pod configuration.
        # Restricted: Heavily restricted policy, following current Pod hardening best practices.

      # Policy violations will trigger the addition of an audit annotation to the event recorded in the audit log, but are otherwise allowed.
      podsecurity_audit: restricted
      # Policy violations will trigger a user-facing warning, but are otherwise allowed.
      podsecurity_warn: restricted
      # Policy violations will cause the pod to be rejected.
      podsecurity_enforce: restricted
        cluster_monitoring: true

    # List of Labels that should be added to the Namespace
    labels:
      my_additional_label: my_label
        another_label: another_label



Manage local Project-Admin Group

It is possible to create a local Group of project admins. This can be used if no other mechanism exists, such as LDAP Group Sync.

In this example, a local Admin Group will be generated (name -admins) with two users assigned to that Group. The RoleBinding will use the role admin per default. If you are using your own Role, you can define it here.

NOTE: You should always define a local_admin_group block, even if some other option manages the Group object. It will at least create a RoleBinding and assigns the ClusterRole to the group_name.

      # Create a local Group with Admin users and the required rolebinding
    # If other systems, like LDAP Group sync is used, you will probaably not need this and can either disable it or remove the whole block.
    local_admin_group:
      enabled: true
      # group_name: my_group_name # <1>
      # optional parameter, default would be "admin"
      clusterrole: admin # <2>
      # List of users
      users: # <3>
        - mona
          - peter



<1> Optional: name of the group. If not set, it will be automatically generated based on the Namespace name.

<2> Optional: Name of the ClusterRole. If not set, it will automatically use admin.

<3> List of users assigned to the group. If not set, a RoleBinding will be generated only.

Argo CD RBAC

Projects inside Argo CD (not to be confused with Kubernetes Projects) help you to logically group applications together. In this example, I create an Argo CD project for every Namespace a tenant manages. This will allow Mona or Peter to manage the Application via Argo CD. Such objects are defined by the AppProject object, which is explained in the Argo CD documentation.

These projects you allow to:

  • Restrict allowed sources (i.e., Git repositories).
  • Restrict destination clusters and namespaces.
  • Restrict which objects are allowed to be deployed.
  • Define project roles to provide application RBAC (bound to OIDC groups and/or JWT tokens).
  • Define timeframes when Application synchronization is allowed or not.

The example defines the following block. All parameters should be set here since no default values will be set for most of them.

      # Creation of Argo CD Project
    argocd_rbac_setup:
      # This is required to build the rbac rules correctly. Theoretically, you can create multiple RBAC rules, but usually you create one per project/tenant
      argocd_project_1:
        enabled: true # <1>
        # Name of the AppProject is set to the tenants Namespace. Which means, each Namespace will get it's own AppProject
        name: *name # <2>
        # List of allowed repositories. If the tenant tries to use a different repo, Argo CD will deny it. * can be used to allow all.
        sourceRepos: # <4>
          - 'https://github.com/tjungbauer/book-import/'
        rbac: # <5>
            # Name of the RBAC rule
          - name: write
            # Description of the RBAC rule
            description: "Group to deploy on DEV environment"
            # List of OCP groups that is allowed to manage objects in this project
            oidc_groups: # <6>
              - *oidc-group
            # Project policies
            # This will limit a project to specific actions
            # Parameters:
            # - action: Mandatory, either get, create, update, delete, sync or override
            # - permissions: allow or deny (Default: deny)
            # - resource: i.e applications (Default: applications)
            # - object: Which kind of objects can be managed, default "*" (all) inside the namespace
            policies: # <7>
              - action: get # get, create, update, delete, sync, override
                permission: allow # allow or deny
                object: '*' # which kind of objects can be managed, default "*" (all) inside the namespace
              - action: create
                permission: allow
              - action: update
                permission: allow
              - action: delete
                permission: allow
              - action: sync
                permission: allow
              - action: override
                permission: allow
        # Sync Windows - when application can be synced or not. Typically used to prevent automatic synchronization during specific time frames
        # but can be used to limit the allowed syncs as well.
        syncWindows: # <8>
          - applications:
              - '*'
            clusters:
              - *environment # the cluster we care currently configuring
            namespaces:
              - *name # the namespace of this application
            timezone: 'Europe/Amsterdam' # timezone, default Europe/Amsterdam
            duration: 1h # duration, for example "30m" or "1h" (default 1h)
            kind: allow # allow or deny (default allow)
            manualSync: true # is manual sync allowed ot not (default true)
              schedule: '* * * * *' # cronjob like schedule: Min, Hour, Day, Month, Weekday (default '55 0 1 12 *' )



<1> Enabled true/false.

<2> Name of the AppProject object; for better cross-reference, I am using the name of the namespace here.

<3> List of allowed source repositories.

<4> List of RBAC rules with name and description. While it is possible to create multiple rules, I usually work with one definition per Namespace. However, when you have various groups with a fine granular permission matrix, you might need to define more.

<5> List of OpenShift Groups that are allowed for this project. The group name must be known or is generated by the Helm chart.

<6> Policies, containing the parameters: action (get, create, update, delete, sync, or override), permissions (deny, allow), resources (i.e., applications (==default value)) and object (default = *).

<7> Definition of sync windows (timeframe when synchronization is allowed or disallowed). It defines the application, environment, namespace, timezone, timeframe, and whether a manual synchronization is allowed.

ResourceQuota

A ResourceQuota object defines limits per resource for a project. It can limit the quantity of objects (i.e., the maximum number of Pods) and the amount of compute resources that can be requested and used (i.e., CPU and memory).

The following defines several settings for a ResourceQuota. Only the ones that are defined will be created. Any undefined value means no quota exists; thus, no limit is configured for that specific object/compute resource. This makes sure that you define useful values for the quotas that fit into your individual environment.

NOTE: Only hard limits are set currently, but not scopes.

      # Configure ResourceQuotas
    # Here are a lot of examples, typically, you do not need all of these. cpu/memory is a good start for most use cases.
    resourceQuotas:
      # Enable Quotas or not. You can either disable it or remove the whole block
      enabled: true
      # limits of Pods, CPU, Memory, storage, secrets... etc. etc.
      # Byte values will be replace: gi -> Gi, mi -> Mi
      pods: 4 # <1>
      cpu: 4
      memory: 4Gi
      ephemeral_storage: 4Gi
      replicationcontrollers: 20
      resourcequotas: 20
      services: 100
      secrets: 100
      configmaps: 100
      persistentvolumeclaims: 10
      limits:
        cpu: 4
        memory: 4gi # lower case will be automatically replaced
        ephemeral_storage: 4mi # lower case will be automatically replaced
      requests:
        cpu: 1
        memory: 2Gi
        storage: 50Gi
        ephemeral_storage: 2Gi
      # add here a list of your storage classes you would like to limit as well.
      storageclasses:
        # for example: Storageclass "bronze" has a request limit and a limit ov max. PVCs.
        bronze.storageclass.storage.k8s.io/requests.storage: "10Gi"
          bronze.storageclass.storage.k8s.io/persistentvolumeclaims: "10"



<1> List of hard limits currently supported by the Helm Chart. You only need to define the limits that you actually want to set.

Limit ranges

A limit range can restrict the consumption of a resource inside a project. Setting specific resource limits for a pod, container, image, image stream, or persistent volume claim (PVC) is possible.

Currently, the Helm Chart supports Container, Pods, and PVCs. Setting LimitRanges and convincing developers to set resources accordingly in their Kubernetes objects is recommended.

However, this is sometimes not the case. If you want to set a LimitRange, you can define the following block in the values-file:

      # Limit Ranges, are optional, if not set here, then the default (very small ones) are used
    limitRanges:
      # Enable Quotas or not. You can either disable it or remove the whole block
      enabled: true
      pod: # <1>
        max:
          cpu: 4
          memory: 4Gi
        min:
          cpu: 500m
          memory: 500Mi
      container: # <2>
        max:
          cpu: 4
          memory: 4Gi
        min:
          cpu: 500m
          memory: 500Mi
        default:
          cpu: 1
          memory: 4Gi
        defaultRequest:
          cpu: 1
          memory: 2Gi
      pvc: # <3>
        min:
          storage: 1Gi
        max:
            storage: 20Gi



<1> LimitRanges for Pods.

<2> LimitRanges for Containers.

<3> LimitRanges for PVCs.

As for ResourceQuotas, only defined settings will be created. For example, if nothing is set for pod.max.cpu, then this value will be ignored.

Default Network Policies

NOTE: By default, the project admin role can modify Network Policies. This means they can change, create, or delete them. Creating a special Role in OpenShift that does not provide this privilege is recommended if Network Policies shall be managed at a central place and not by the project admins themselves.

Network Policies limit the allowed traffic for each Namespace and should be set from the beginning. They are individual for every project, but some default policies should be considered.

The five default policies that the Helm Chart would create if you do not disable them are:

  1. Allow Ingress traffic from OpenShift Router (aka allow external traffic to reach your application).
  2. Allow OpenShift Monitoring to fetch metrics.
  3. Allow communication inside one Namespace (pod to pod in the same Namespace).
  4. Allow Kube-API server to interact with the objects.
  5. Deny egress traffic to prevent any egress traffic at all.

The Helm chart will set them automatically unless otherwise defined in the values-file.

The following example would disable the "deny egress all" policy, which means that egress traffic to any destination is allowed.

      # For example: I would like to disable "deny all egress" (which means the Pods can reach any external destination).
    default_policies:
      # disable_allow_from_ingress: false
      # disable_allow_from_monitoring: false
      # disable_allow_from_same_namespace: false
      # disable_allow_kube_apiserver: false
        disable_deny_all_egress: true # This default policy will not be created, while the others will be.



Additional Network Policies

It is possible to define additional Network Policies using the Helm Chart. At first look, these objects look quite complex (also on the second look). However, you can define a list of policies by defining a Name, podSelector, and Ingress or Egress Rules, which can have a podSelector as well, or a NamespaceSelector or simply an IP-Block and define a list of protocols and ports.

The example values-file defines two policies: netpol1 and netpol2.

NOTE: Working with Network Policies from the beginning of your Container journey is recommended. Adding them later might be very complex because nobody knows which sources or destinations shall be allowed.

NOTE: By default, the project admin role can modify Network Policies. This means it can change, create, or delete them. Creating a special Role that does not provide this privilege in OpenShift is recommended if Network Policies are managed centrally.

      # Additional custom Network Policies
    # I created this to be able to create Policies using a Helm chart. It might look complex but it is actually quite straight forward.
    #
    # 1. Defaine a PodsSelect (or use all pods see example 2)
    # 2. Define Ingress rules with selectors and ports or IP addresses
    # 3. Optionally define egress Rules
    networkpolicies:
        # List of NetworkPolicies to create with name and switch if active or not
      - name: netpol1
        active: true

        # The PodSelect based on matchLabels. Could be empty as well
        podSelector:
          matchLabels:
            app: myapplication
              app2: myapplication2

        # Incoming Rules, based on Port and Selectors (Pod and Namespace)
        ingressRules:
          - selectors:
                - podSelector:
                    matchLabels:
                      app: myapplication
                      version: '1.0'
                - namespaceSelector:
                    matchLabels:
                      testnamespace: "true"
            ports:
              - protocol: TCP
                port: 443

        # Outgoing Rules, based on Port and Selectors
        egressRules:
          - selectors: []
            ports:
              - port: 2
                protocol: UDP
          - ports:
              - port: 443
                protocol: TCP
            selectors:
              - podSelector:
                  matchLabels:
                    app: myapplication
                    version: '1.0'

        # 2nd example
      - name: netpol2
        active: true

        podSelector: {}

        # Incoming Rules, based on ipBlock and Selectors
        ingressRules:
          - selectors:
                - podSelector: {}
                - namespaceSelector:
                    matchLabels:
                      testnamespace: "testnamespace"
                - ipBlock:
                    cidr: 127.0.0.1/24
                    except:
                      - 127.0.0.2/32
            ports:
              - protocol: TCP
                  port: 443



Bring everything together

Mona and Peter requested the new Namespaces my-main-app-project-1 and my-main-app-project-2 for their project my-main-app. They defined the name, which group shall have access, and the quota and network policies they will require. Maybe they ordered such a project via some tooling, like Jira.

The cluster administrator created a new folder and a values-file that defines all required parameters.

NOTE: A full example can be found in my GitHub repository: values.yaml

The ApplicationSet will automatically fetch the new folder and create the Application inside Argo CD.

GitOps uses the Helm Chart and would like to create all requested objects.

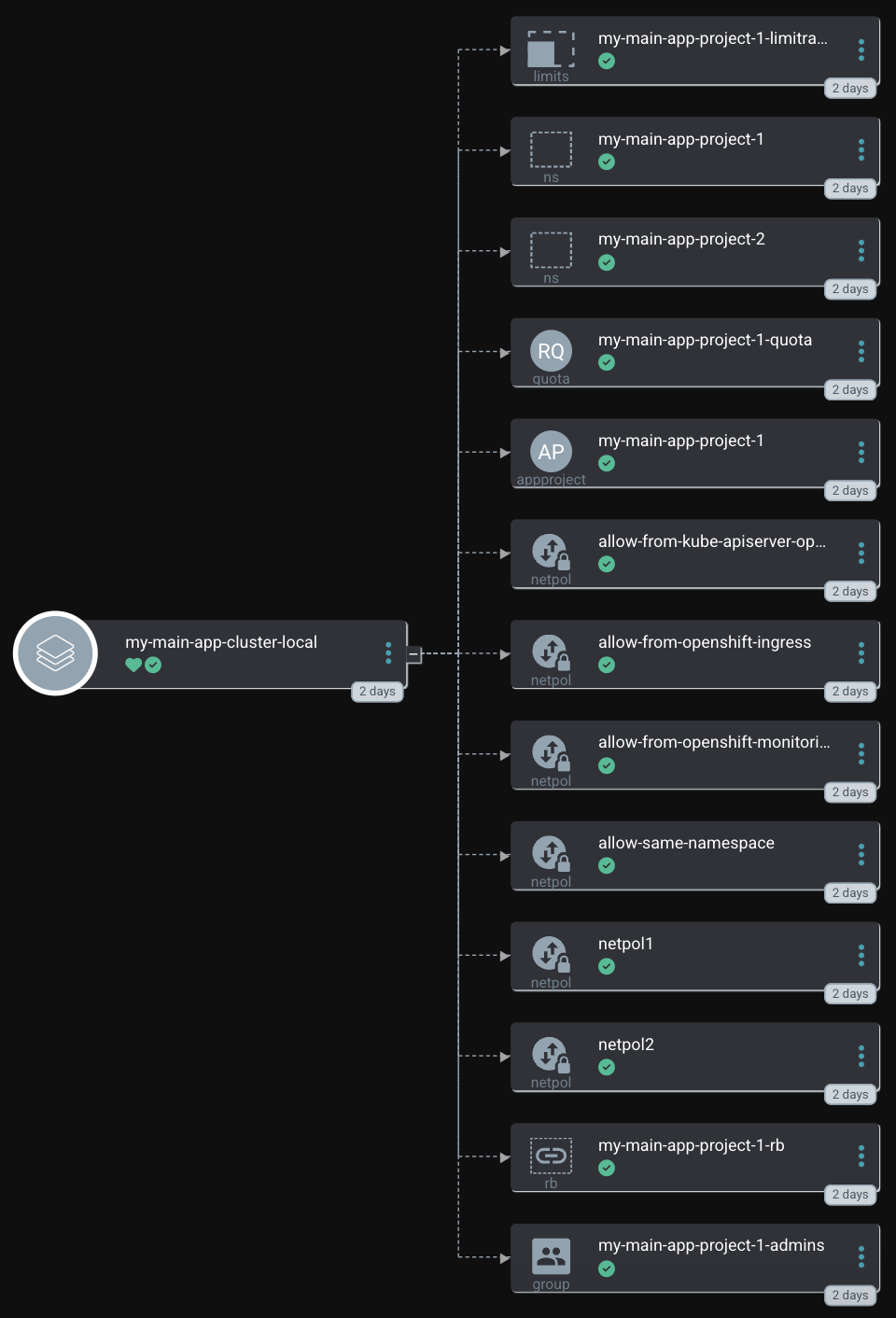

onboarding

Once synchronized, Mona can log into the application-scoped GitOps instance, create the Applications she requires, and sync her workload onto the cluster. She is limited by the AppProject and can only use the allowed Namespaces, clusters, repositories, etc.

mona-app

But isn't this quite complex?

Yes, defining everything in one file can be quite complex. Generating this file can be automated with Ansible, for example. Moreover, not everything must be used. For example, if you do not want to work with Quota or LimitRanges, just disable them or remove the block in the values-file. However, there is another method.

Project T-Shirt sizes

While working on this article and collecting feedback, a discussion about the possibility of defining T-Shirt sizes for a project started. Wouldn't it be good to define T-Shirt sizes with default settings and then use these definitions to create a new tenant? Still, the possibility to change settings for specific projects should be allowed.

I added this feature, and the configurations for each project are now simplified.

Values File: values-global.yaml with T-Shirt sized projects

The first change was done in the global values-files. The global settings allowed_source_repos and tshirt_sizes have been added. It now looks like the following:

---

global:
 # Namespace of application scoped GitOps instance, that is responsible to deploy workload onto the clusters
  application_gitops_namespace: gitops-application

 # cluster environments. A list of clusters that are known in Argo CD
 # name and url must be equal to what is defined in Argo CD
 envs:
  - name: in-cluster
    url: https://kubernetes.default.svc
  - name: prod-cluster
      url: https://production.cluster

  # Repositories projects are allowed to use. These are configured on a global level and used if not specified in a _T-Shirt_ project.
 # Can be overwritten for projects in their specific values-file
 allowed_source_repos: # <1>
  - "https://myrepo"
  - "https://the-second-repo"

 tshirt_sizes: # <2>
  - name: XL
    quota:
      pods: 100
      limits:
        cpu: 4
        memory: 4Gi
      requests:
        cpu: 1
        memory: 2Gi
  - name: L
    quota:
      limits:
        cpu: 2
        memory: 2Gi
      requests:
        cpu: 1
        memory: 1Gi
  - name: S
    quota: # <3>
      limits:
        cpu: 1
        memory: 1Gi
      requests:
        cpu: 500m
        memory: 1Gi
    limitRanges: # <4>
      container:
        default:
          cpu: 1
          memory: 4Gi
        defaultRequest:
          cpu: 1
            memory: 2Gi



<1> Repositories that are allowed inside the AppProject. It can be overwritten for individual projects.

<2> T-Shirt sizes for projects. Currently defined: XL, L, S.

<3> Default Quota settings for the S-Size.

<4> Default LimitRanges for the S-Size.

Values file: values.yaml with T-Shirt-sized projects

Like the global values-file, the values-file for the individual project on the specific cluster is slightly changed.

It can now define the parameter project_size, which must be one of the sizes defined in the global values-file. LimitRanges, ResourceQuota, and the list of allowed repositories set here will overwrite the default settings (only the values set here will overwrite the defaults). The management of NetworkPolicies (default or custom) stays the same. For the Argo CD RBAC definition, default values are used, but it would still be possible to define the whole block as described above (but keep it simple).

# Group that is allowed in RBAC. This group can either be created using this Helm Chart (will be named as <namespace>-admin) or must be known (for example synced via LDAP Group Sync)
oidc_groups: &oidc-group my-tshirt-size-app-admins

# Environment to which these values are valid, this should be the cluster name as defined in the values-global.yaml
# In best case the same is equal to the folder we are currntly in, but this is optional.
environment: &environment in-cluster

# Parameters handed over to Sub-Chart helper-proj-onboarding
helper-proj-onboarding:

  environment: *environment

 # List of namespaces this tenant shall manage.
 # A tenant or project may consist of multiple namespace
  namespaces:

  # Name of the first Namespace
    - name: &name my-tshirt-size-app

    # Is this Namespace enabled or not
    enabled: true

      project_size: "S" # <1>

    # Override specific quota settings individually
    resourceQuotas: # <2>
      limits:
          cpu: 10

    local_admin_group: # <3>
      enabled: true
      # group_name: my_group_name
      # optional parameter, default would be "admin"
      clusterrole: admin
      # List of users
      users:
        - mona
          - peter

    # Allowed repositories for this project, overwrites the default settings.
    # allowed_source_repos: # <4>
    # - "https://my-personal-repo"
      # - "https://my-second-personal-repo"

    # Network Policies ... these are a bit more complex, when you want to keep them fully configurable.
      # Maybe the following is too much to manage, anyway, let's start

    # 5 default network policies will be created everytime, unless you overwrite them here
    # You can remove this whole block to have the policies created or you can select specific policies
    # which shall be disabled.
    # The 5 policies are:
    # - Allow Ingress traffic from the OpenShift Router
    # - Allow OpenShift Monitoring to access and fetch metrics
    # - Allow inner namespace communication (pod to pod of the same Namespace)
    # - Allow Kube API Server
      # - Forbid ANY Egress traffic

    # For example: I would like to disable "deny all egress" (which means the Pods can reach any external destination).
    default_policies: # <5>
    # disable_allow_from_ingress: false
    # disable_allow_from_monitoring: false
    # disable_allow_from_same_namespace: false
    # disable_allow_kube_apiserver: false
        disable_deny_all_egress: true # This default policy will not be created, while the others will be.

    # Overwrite LimitRanges per project
    limitRanges: # <6>
      enabled: true
      container:
        max:
          cpu: 4
          memory: 10Gi
        min:
          cpu: 1
            memory: 100Mi



<1> T-Shirt size as defined in the global values-files.

<2> Overwrite specific values for ResourceQuota.

<3> Define Group administrator.

<4> Overwrite the allowed repository list.

<5> Default NetworkPolicies, that might be disabled.

<6> Overwrite specific values for LimitRanges.

Like the other project onboardings, the ApplicationSet will automatically fetch it:

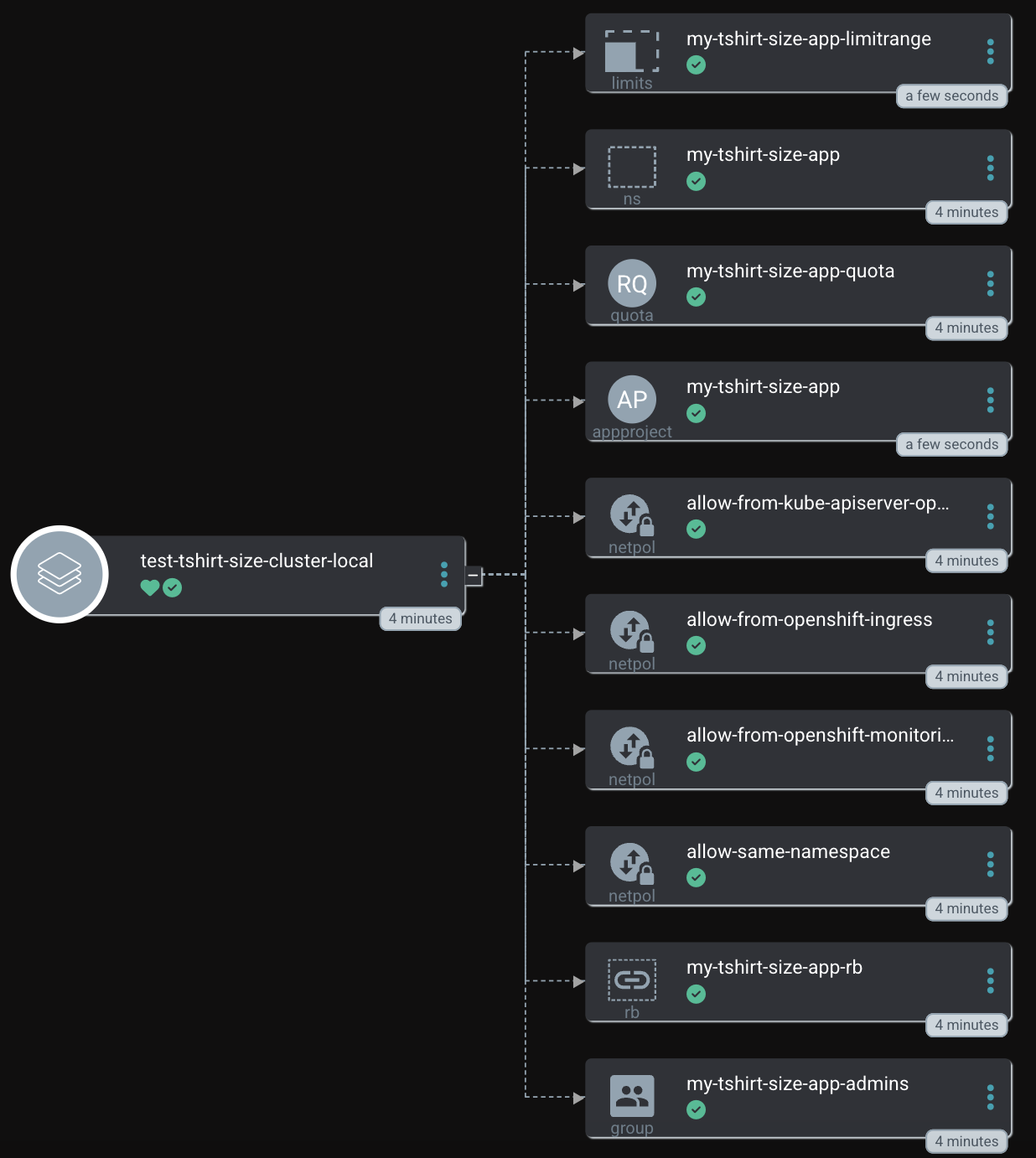

onboarding-tshirt

To use the power of labels, the actual T-Shirt size is added to the Namespace object:

apiVersion: v1
kind: Namespace
metadata:
 labels:
[...]
  namespace-size: S
  name: my-tshirt-size-app



Summary

This article covers how to onboard new projects into OpenShift using a GitOps approach. It is one option of many. I prefer Helm Charts over plain YAML or Kustomize because they can be repeated anytime. However, Kustomize or YAML will also work. The most important part is not the actual tool but that all objects and any configurations are defined in Git, where a GitOps agent (in this case, Argo CD) can fetch them and sync them onto the cluster.


About the author

UI_Icon-Red_Hat-Close-A-Black-RGB

Browse by channel

automation icon

Automation

The latest on IT automation for tech, teams, and environments

AI icon

Artificial intelligence

Updates on the platforms that free customers to run AI workloads anywhere

open hybrid cloud icon

Open hybrid cloud

Explore how we build a more flexible future with hybrid cloud

security icon

Security

The latest on how we reduce risks across environments and technologies

edge icon

Edge computing

Updates on the platforms that simplify operations at the edge

Infrastructure icon

Infrastructure

The latest on the world’s leading enterprise Linux platform

application development icon

Applications

Inside our solutions to the toughest application challenges

Original series icon

Original shows

Entertaining stories from the makers and leaders in enterprise tech
